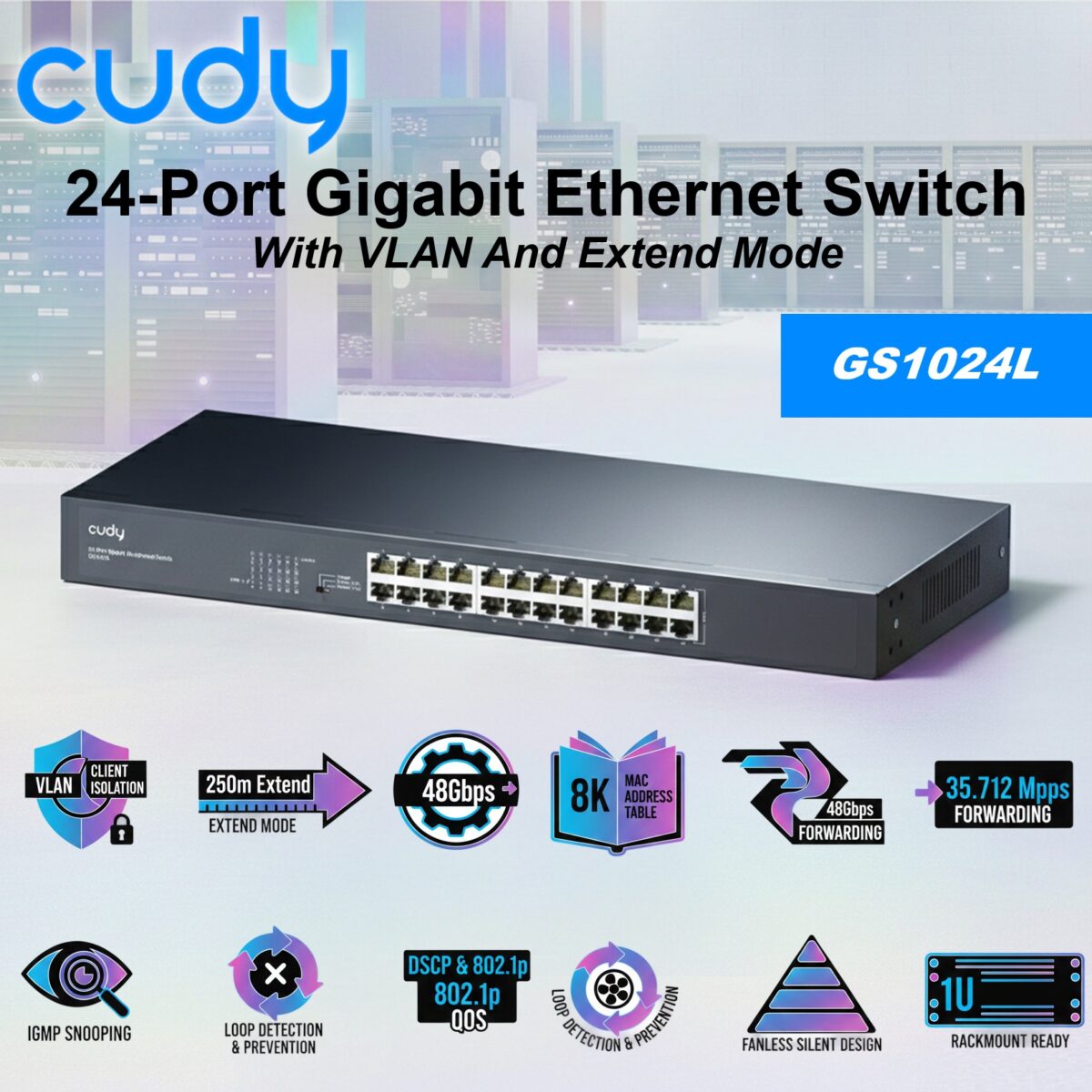

CUDY GS1024L 24-Port Gigabit Ethernet Switch With VLAN And Extend Mode, 48Gbps Switching, 8K MAC, Fanless 1U Rackmount, 250m Extend, AC 90-260V

Expert Features24× Gigabit RJ45 Ports : Full 24 Gigabit Ethernet ports with shielded RJ45 interfaces delivering stable 10/100/1000 Mbps connectivity for dense office, ISP, surveillance, or FTTB deployments.Default / VLAN / Extend Multi-Mode : Hardware DIP switch allows instant switching between Default, VLAN isolation, and Extend long-range mode — no software, no drama.VLAN Client Isolation (Ports 1–22) : In VLAN mode, ports 1–22 can only communicate with uplink ports, protecting clients from lateral attacks and internal hacking risks.Extend Mode Up To 250 Meters : Ports 1–22 support up to 250m transmission distance (10 Mbps) when Extend mode is activated — perfect for long cable CCTV or corridor deployments.48Gbps Switching Capacity : High backplane bandwidth ensures smooth traffic flow across all 24 ports without congestion.35.712 Mpps Forwarding Rate : Fast packet forwarding keeps latency low and throughput consistent under load.8192 MAC Address Table : Large MAC table handles growing networks without choking on device count.15KB Jumbo Frame Support : Efficient large-frame handling for optimized data transfer.IGMP Snooping : Multicast traffic is intelligently forwarded only to relevant ports — no useless broadcasting noise.Loop Detection & Prevention : Automatically blocks looping ports to prevent network downtime caused by cabling mistakes.DSCP & 802.1p QoS : Prioritizes critical packets based on DSCP headers and Layer 2 QoS for smoother VoIP and streaming performance.Fanless Metal Design : Silent cooling system with low heat generation — ideal for offices and noise-sensitive environments.Low Power Consumption : Maximum 11W power draw with basic power-saving support — efficient and cost-conscious.Standard 1U Rackmount Or Desktop : 19-inch 1U rack installation with included brackets, or deploy it directly on a desk.3️⃣ Expert SpecsCategorySpecificationModel VersionGS1024L 1.0Interfaces – Gigabit RJ45 Ports24Shielded RJ45 PortTrueExtend Mode Ports#1~#22VLAN Mode Ports#1~#22LED IndicatorsPowerSpeed/Link/Act of Each Ethernet PortPower InterfaceAC InletPhysical ButtonsVLAN/Default/Extend DIP SwitchCopper Speed & DistanceCat.3 : 100m @ 10 MbpsCat.5 : 100m @ 100 MbpsCat.5e : 100m @ 1000 MbpsCat.5e : 250m @ 10 Mbps (Extend Mode Only)MAC Address Table8192Max Switching Capacity48 GbpsMax Forwarding Rate35.712 MppsJumbo Frame15 KBPacket Buffer4 MbitBasic Power SavingTruePower MethodsACPower Input90–260V~ 50/60HzMax Power Consumption11WIdle Power Consumption6.8W802.3 Protocols802.3x Flow Control802.3i 10BASE-T802.3u 100BASE-TX802.3ab 1000BASE-T802.1 Protocols802.1p: LAN Layer 2 QoS/CoSL2 FeaturesIGMP SnoopingLoop PreventionLoop DetectionDSCP QoS802.1p QoSGrounding MethodsThree-Prong PlugGrounding PointEMS ProtectionIEC/EN 61000-4-2 Level 3 ESD: Contact 6kV; Air 8kVIEC/EN 61000-4-5 Level 4 Surge: Power DM 2kV, CM 4kV; RJ45 CM 4kVOperating Temperature0°C ~ 40°C (32°F ~ 104°F)Storage Temperature-40°C ~ 70°C (-40°F ~ 158°F)Operating Humidity10% ~ 90% Non-CondensingStorage Humidity5% ~ 90% Non-CondensingDimensions440 × 180 × 44 mm17.32 × 7.09 × 1.73 inchesProduct WeightEU/US: 1671 g (58.94 oz.)EU: 1650 g (58.2 oz.)Casing MaterialMetalInstallationDesktopRackmount via BracketsPackage ContentGS1024LPower CordInstallation GuideMounting KitRetail Package Dimension487 × 267 × 84 mm19.17 × 10.51 × 3.31 inchesRetail Package WeightEU/US: 2380 g (83.95 oz.)EU: 2300 g (81.13 oz.)
