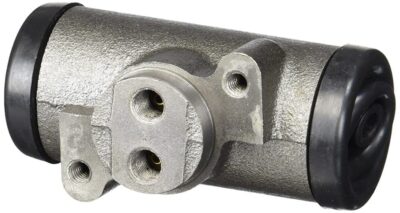

Description 517055 Drum Brake Wheel Cylinder New Holland Rear Brake Cylinder, RH and LH Upper and Lower, 4 used per axle, 2 per side [27149, E-5167, 55729] Used in models: New Holland Bale Wagon 1068, 1069, 1075, 1047, 8500, 1049, 1049-SUPER, 1048, 1048-SUPER, 1065, 1046 ASN Product Description: REAR HYDRAULIC BRAKE – WHEEL CYLINDER; Weight: 2.56; UPC Code: 729374230911; Application: Ford with Gunite (K-H) 15 in. x 4 in., 15 in. x 5 in. Rear Brakes; Bores: 1.50 in.; Casting Number: 55729; Port 1 Tube Seat: No; Port Thread Diameters: .44 in.; Type: Single Cylinder Upper and Lower; LH/RH: Left and Right; Threads Per in. 24. Centric Wheel Cylinders are built to OE specifications Additional Parts Needed: BSN Front Brake Cylinders: FRONT BRAKE, USED ON & BSN 513384 – 1068, USED ON & BSN 3075 – 1069 518505 Drum Brake Wheel Cylinder RH 518506 Drum Brake Wheel Cylinder LH ASN Front Brake Cylinders: FRONT BRAKE, USED ON & ASN 513384 – 1068, USED ON & ASN 3076 – 1069 2 x 9849852 BSN Rear Brake Cylinders: REAR BRAKE, USED ON & BSN 513384 – 1068, USED ON & BSN 3076 – 1069 2 x 517055 Drum Brake Wheel Cylinder ASN Rear Brake Cylinders: REAR BRAKE, USED ON & ASN 513384 – 1068, USED ON & ASN 3076 – 1069 279766 Drum Brake Wheel Cylinder RH 279765 Drum Brake Wheel Cylinder LH
