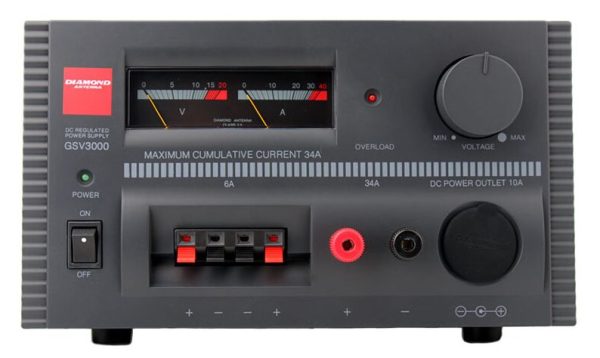

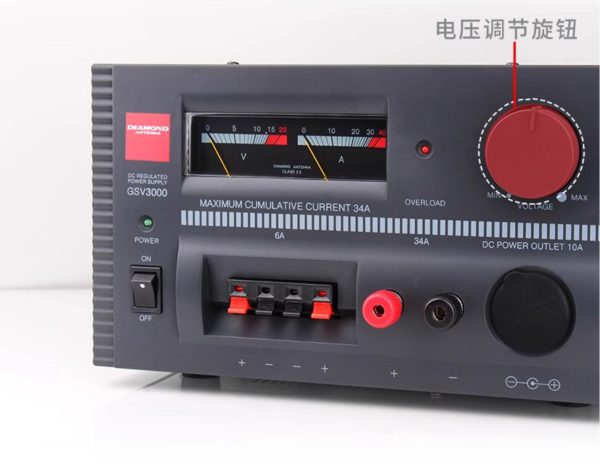

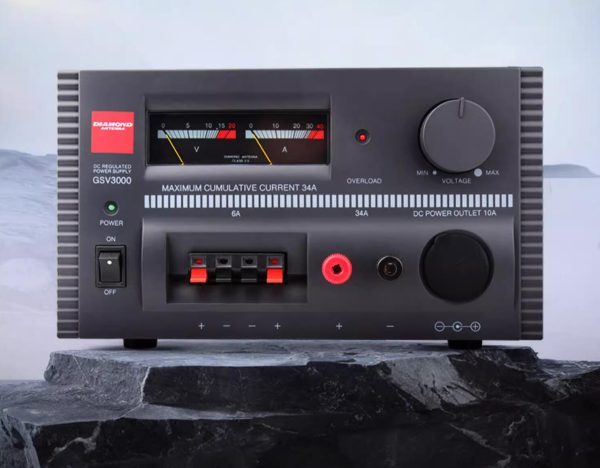

Diamond Gsv3000 Car Unit Short Wave Special Linear Power Supply 30A 13.8V

Diamond Power GSV3000 Short Wave Dedicated Linear Power Supply 30A 13.8V for Vehicle Stations   ABOUT DIAMOND GSV3000 (30 AMP) LINEAR POWER SUPPLY Variable 30A power supply featuring excellent technical data: The GSV-3000 has 30A continuous rating at 100% duty cycle, the DC output range is adjustable from 1 to 15 Volt with a maximum of 3 mVpp ripple. Selectable monitoring of voltage and current with large meter. Automatic current overload protection as well as protection against short-circuit and reverse polarization, automatic internal cooling fan. Voltage-out quick connect or binding posts as well as cigar lighter socket built-in. No RF hash and consequently usable for shortwave and V/UHF transceivers without any interference problems. Key Features/Specifications: Output voltage 1 – 15V DC & 13.8V Fixed Built-in cooling fan * Supply 230V AC 50Hz Size 250 x 150 x 240mm Weight 9.5kg Type: Regulated power supply Input voltage: 100, 110 or 220 VAC (Depending on market) Output voltage: 1-15 VDC Output current: Older: 30 A (100% duty cycle). 34 A peak (1 min on/1 min off) Newer: 34 A (100% duty cycle). ? A peak (1 min on/1 min off) Ripple: Max 3 mVpp @ 13.8 V / 30 A Voltage fluctuation: Efficiency: Dimensions (W*H*D): 250*150*240 mm (9.84*5.91*9.45″) Weight: 9.5 Kg (20.9 lbs) Manufactured: 199x-20xx Other: Cigarette lighter socket (10 A). Automatic cooling fan.
