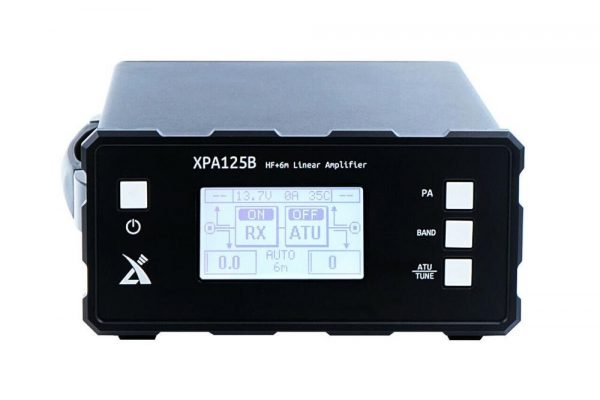

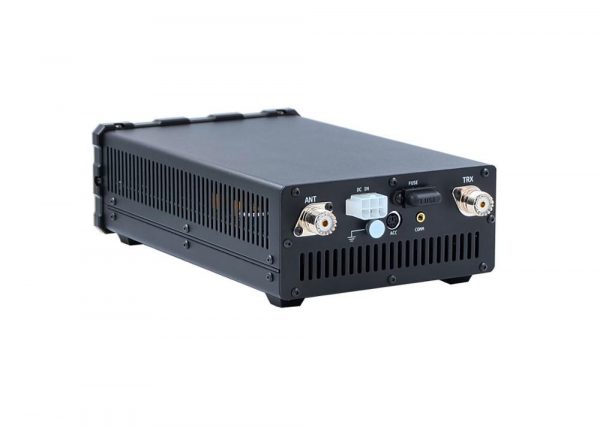

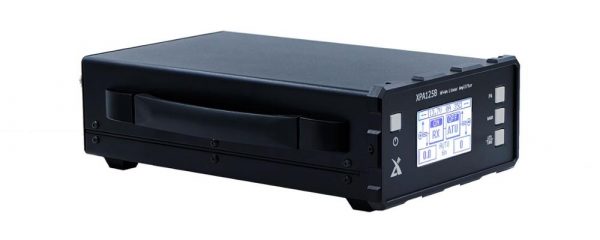

Original Xiegu XPA125B 100W HF Power Amplifier Auto tuner ATU For X5105 X108G G1M G90 Description: Xiegu XPA125B is a 100W PA and ATU all-in-one machine for the Xiegu series. It can quickly build a high-power short-wave transceiver with the X5105, X108G, G1M, G90 and other hosts through the adapter C-19. It is also possible to quickly build a high-power short-wave transceiver with an adapter such as ICOM817 through the adapter CN-20. The mainframe is fully solid-state CNC design, with built-in perfect input and output protection function, so that you can communicate at any time. Amplifier: Frequency range: 1.8 – 54 MHz Maximum output power: 1.8 – 30MHz ≥100W 50 – 54MHz ≥80W Maximum operating ambient temperature: 55℃ Gain: 13dB (±1dB) Spurious suppression:：≥ 50dB Supply voltage: 12 – 15 V DC Current draw @ maximum output: Standby: 700 mA @Max Transmit: 30A @Max ATU: Tuning frequency range: 1.8 – 30 MHz/50 – 54 MHz Maximum tuning range: 14 – 500Ω Product specifications： Dimensions: 260 x 160 x 70 mm (not including control knobs, feet, handles, etc.) Weight：3 Kg(host only) Packge: 1x Xiegu XPA125B AMP HF Power Amplifier(The radio not included)
