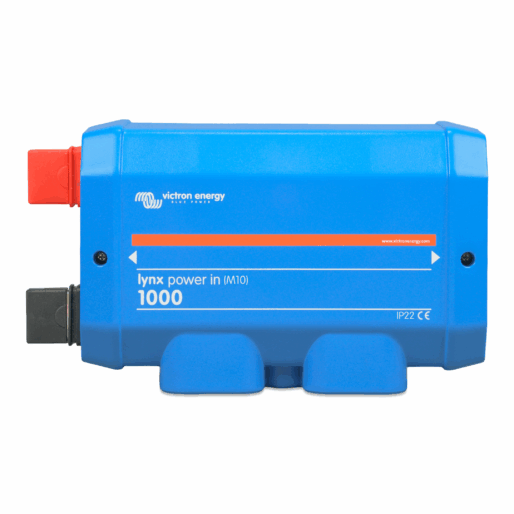

The Lynx Power In contains a positive and negative busbar with 4 connections for batteries, loads or chargers and a ground connection. The Lynx Distribution System The Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, battery monitoring and/or Lithium battery management. The Lynx Distribution System consist of the following parts: Lynx Power In – A positive and negative busbar with four batteries or DC equipment connections, available in two versions, with M10 busbar. Lynx Class-T Power In – A positive and negative busbar that accepts two Class-T fuses and has two battery or DC equipment connections, available with M10 busbar. Lynx Distributor – A positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring, available in two versions, with M10 busbar. Lynx Shunt VE.Can – A positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device. Available in two versions, with M10 busbar. Lynx Smart BMS – For use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring. It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 500A model with M8 or M10 busbars or 1000A model with M10 busbars.
